Product name： Vertical Autoclaves Double Tank Steam Sterilization Machine 400L
Packaging Details：Export Standard Carton
Delivery Time： within 15 days
Detailed
|
MODEL
|
AP-35HD
|
AP-50HD
|
AP-75HD
|
AP-100HD
|
|
Technical Data
|
||||
|
Chamber volume
|
35L
|
50L
|
75L
|
100L
|
|
φ318×450mm
|
φ340×550mm
|
φ400×600mm
|
φ440×650mm
|
|
|
Working pressure
|
0.22Mpa
|
|||
|
Working temperature
|
134℃
|
|||
|
Max. working pressure
|
0.23Mpa
|
|||
|
Heat average
|
≤±1℃
|
|||
|
Timer range
|
0-99min or 0-99hour59min
|
|||
|
Temperature adjust range
|
105-134℃
|
|||
|
Power
|
2.5KW/AC220V 50HZ
|
3KW/AC220V 50HZ
|
4.5KW/AC220V 50HZ
|
|
|
Overall dimension(mm）
|
470×450×1020
|
520×500×1150
|
550×530×1180
|
580×560×1290
|
|
Transport dimension（mm）
|
570×570×1180
|
610×610×1290
|
650×650×1330
|
680×680×1450
|
|
G.W/ N.W
|
70Kg/63Kg
|
82Kg/74Kg
|
100Kg/93Kg
|
110Kg/85Kg
|

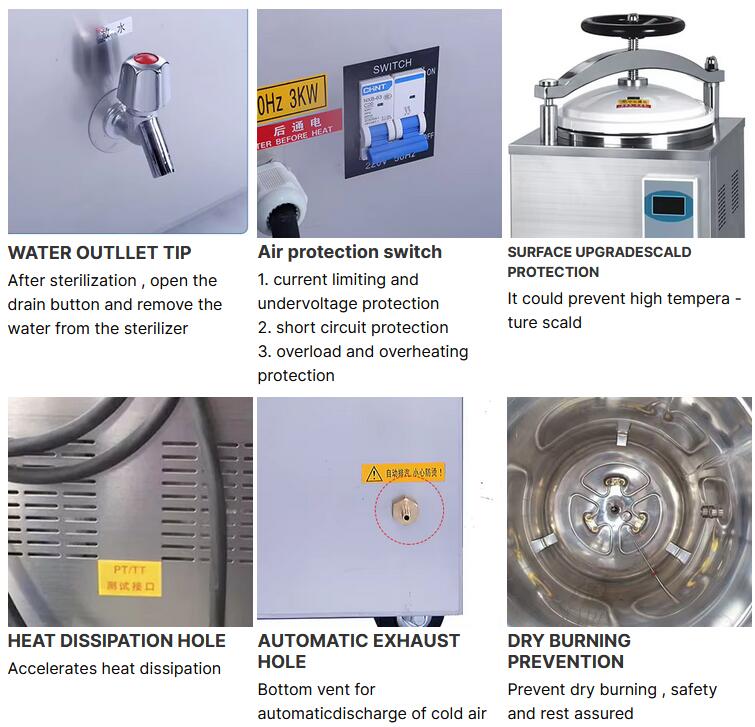

Characteristics:
1. Fully stainless steel structure.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. LCD display of working status,touch type key.
5. Auto discharge the cool air,and steam discharging auto matically after sterilization.
6. Over temperature&over pressure auto-protection.
7. Safe protection of water lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. Easy to operate, safe and reliable.
11. With two stainless steel sterilizing baskets.
12. With drying system.
