Detailed
|
Display
|
Color LCD display + touch screen
|
|
Temperature control range
|
Room temperature ~150°C
|
|
Set temperature
|
20°C, 40°C, 50°C, 80°C, 100°C, any value (higher than room temperature ~150°C)
|
|
Constant temperature accuracy
|
Plus or minus 0.02°C
|
|
Heating power
|
Number of test holes
|
|
Timing range
|
0~999 seconds (according to the national standard, the flow time of each test sample must be higher than 200 seconds)
|
|
Timing accuracy
|
0.1 s
|
|
Timing times
|
1 to 4 times This parameter is optional
|
|
Storage capacity
|
2000 test records
|
|
Printing mode
|
Panel mounted thermal printer
|
|
Power supply
|
AC220V±5% 50Hz±5%
|
|
power
|
1600W
|
|
Service ambient temperature
|
5°C ~ 35°C
|
|
Ambient humidity
|
10%~80%
|
Functions&Characteristics：

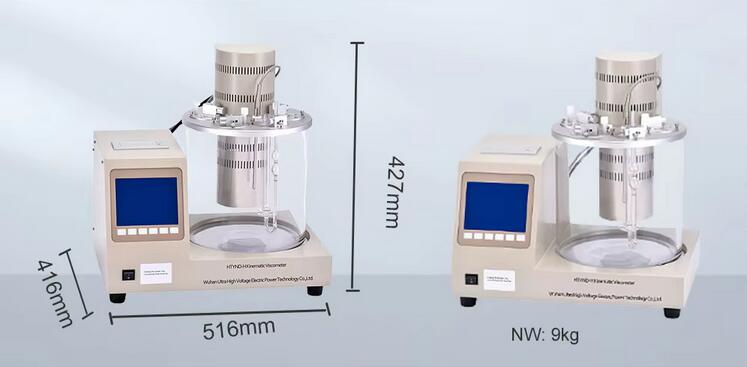

1、Automatic viscosity measuring instrument for petroleum products, using advanced fuzzy PID temperature control technology, accurate temperature control, accuracy up to ±0.02℃
2、 Can be set 20℃, 40℃, 50℃, 80℃, 100℃ and other national standard temperature control points, and can be set any temperature control temperature (set temperature should be higher than room temperature), set temperature resolution of 0.1℃, can be used as ordinary constant temperature water bath
3、Four glass capillary viscometers can be used simultaneously for kinematic viscosity measurement at the same constant temperature. Each viscometer can be repeated for 4 times as a set of test data
4、Using high definition color touch screen technology, the interface content is rich and clear, touch screen response is fast and flexible
5、 Using large capacity memory chip, up to 2000 measurement results can be stored
6、 The panel mounted thermal printer is used to print the test results automatically and quickly after the test is finished
